Rated voltage

6V (4 AA batteries or ac110-240v / 6V switching power supply)

Working water pressure

0.05-0.7MPa

Workflow

Two stage flushing function and single flushing function can be set as required.

Automatic flushing

Automatic flushing for 8 seconds without induction for 24 hours;

Sensing distance

he maximum sensing distance is 65cm and the minimum sensing distance is 45cm. The critical value is less than 3cm, and the automatic extension distance of exit induction is less than 5cm.
The sensing reference material is 30 * 30cm kraft paper baffle.

Effluent flow

The controller assembly is connected with solenoid valve and tested under static water pressure of 0.17mp
Once flushing: one cycle, flushing flow rate is 1 ± 0.3L

Two times of flushing: one cycle, the flushing flow rate is 1.5 ± 0.3L
(for each flushing cycle, the flow can be adjusted by the stop valve)

Strength test

Under the condition of hydrostatic pressure of 0.9mpa, the valve body and its joints shall be free of deformation and leakage after 30s of connecting products;

Low pressure alarm

When the battery voltage is lower than 4.4V ± 0.1V, the under voltage indicator flashes three times every 2 seconds, and the solenoid valve does not work;

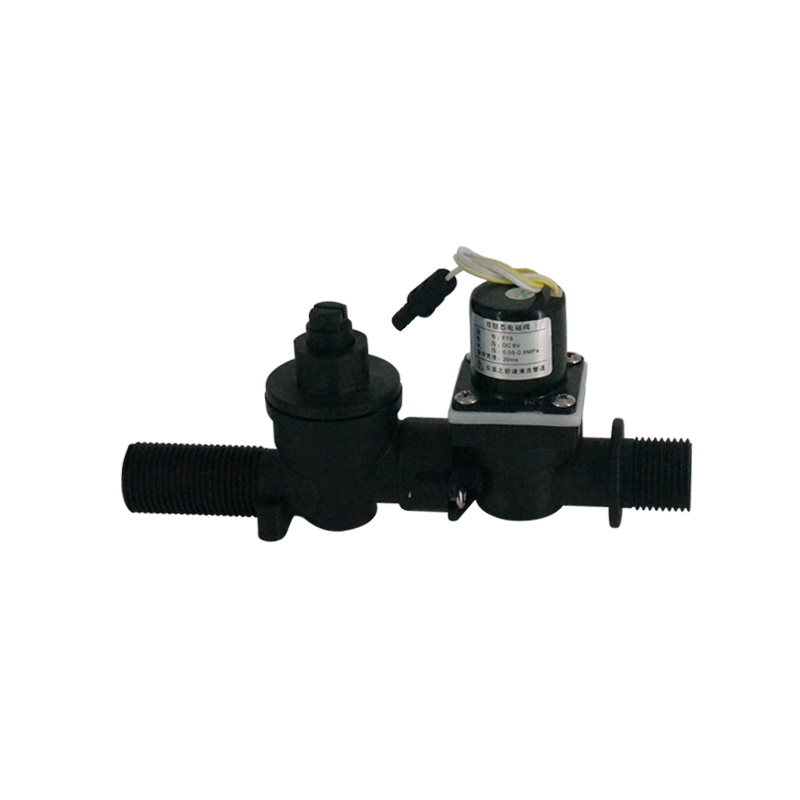

Water quality filtration

The valve body is equipped with a filter to prevent impurities in water from affecting the work of the solenoid valve. The filter cover can be unscrewed and the filter screen can be taken out for cleaning

power waste

Static working current ≤ 25ua

working life

Service life ≥ 200000 times;
