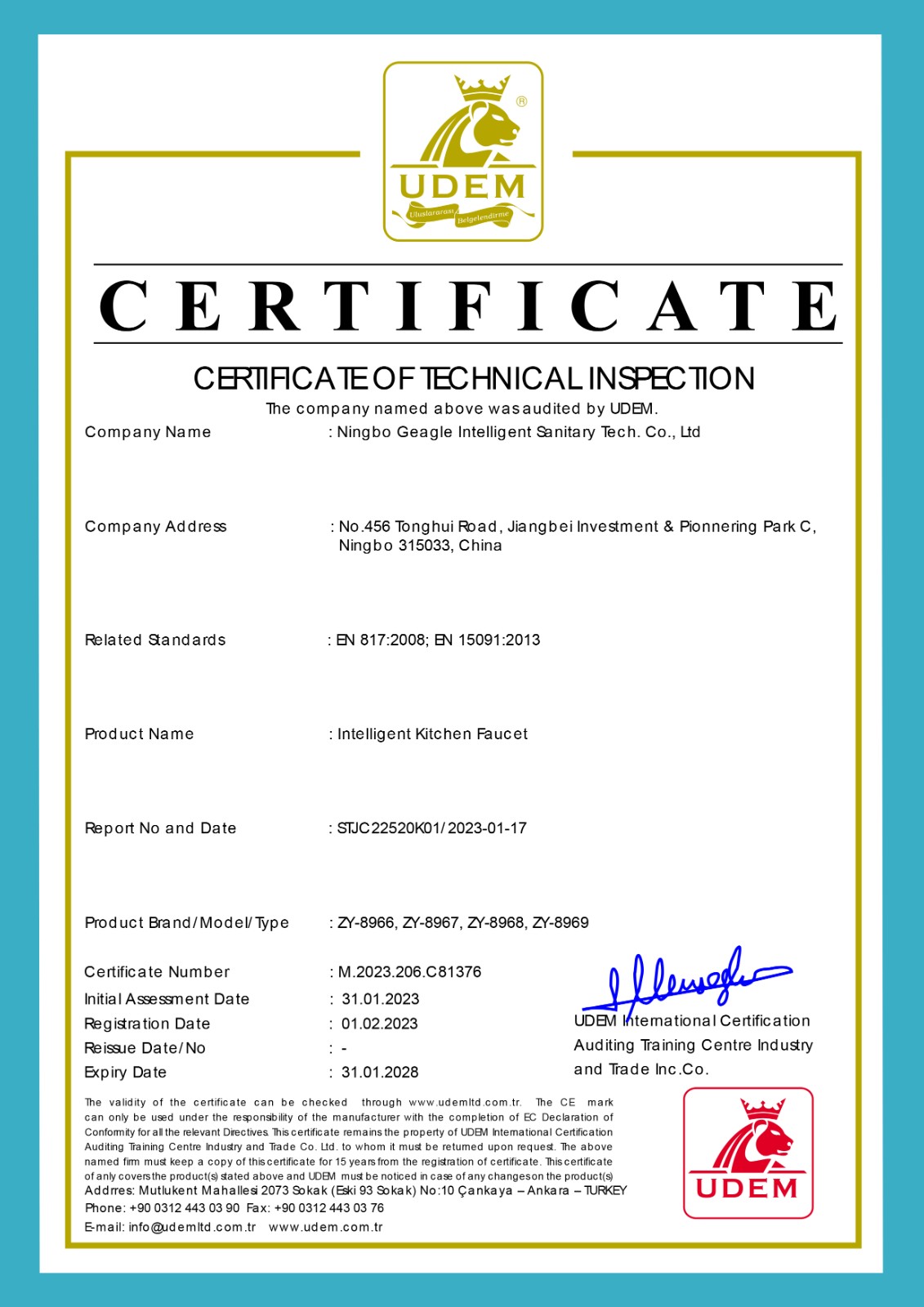

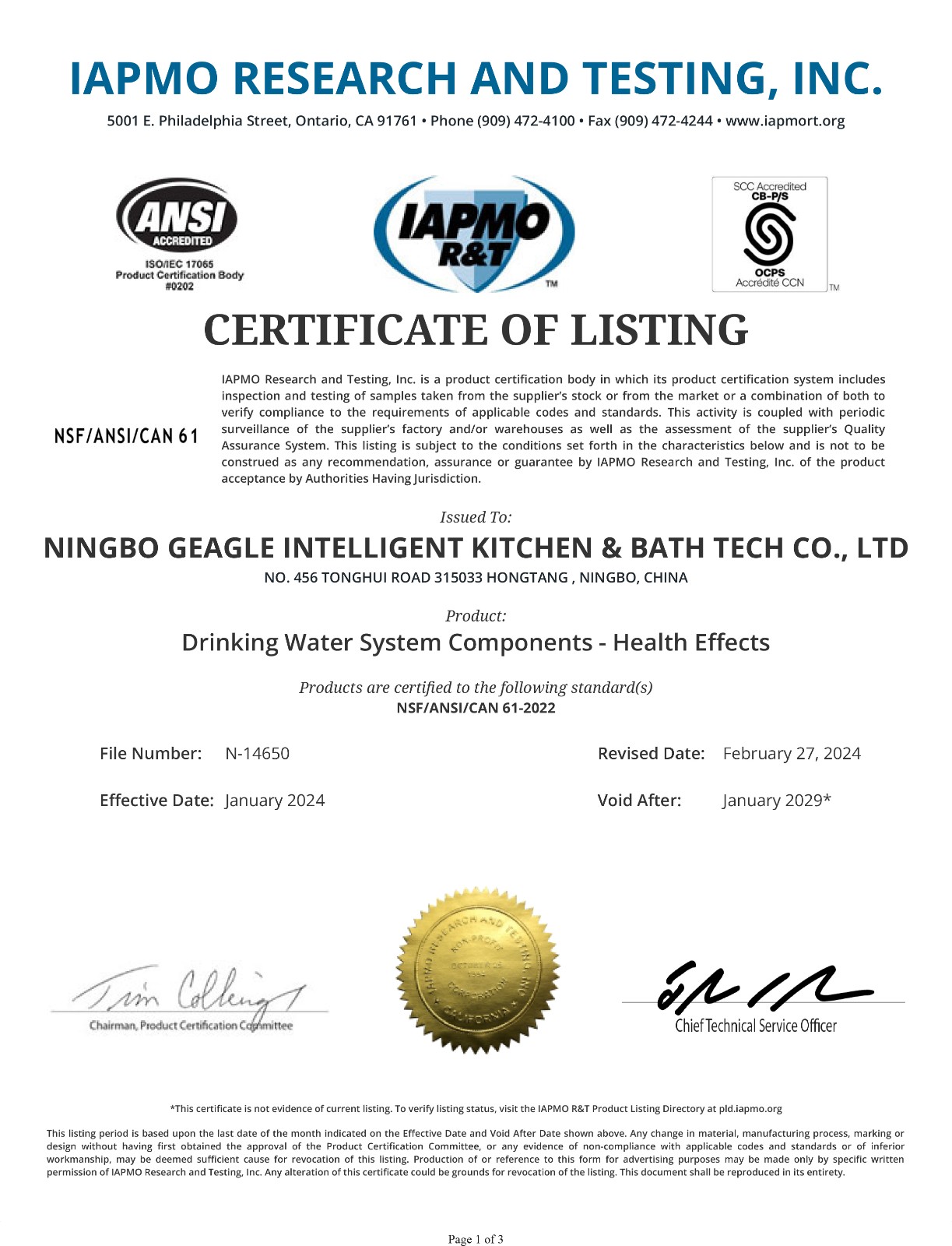

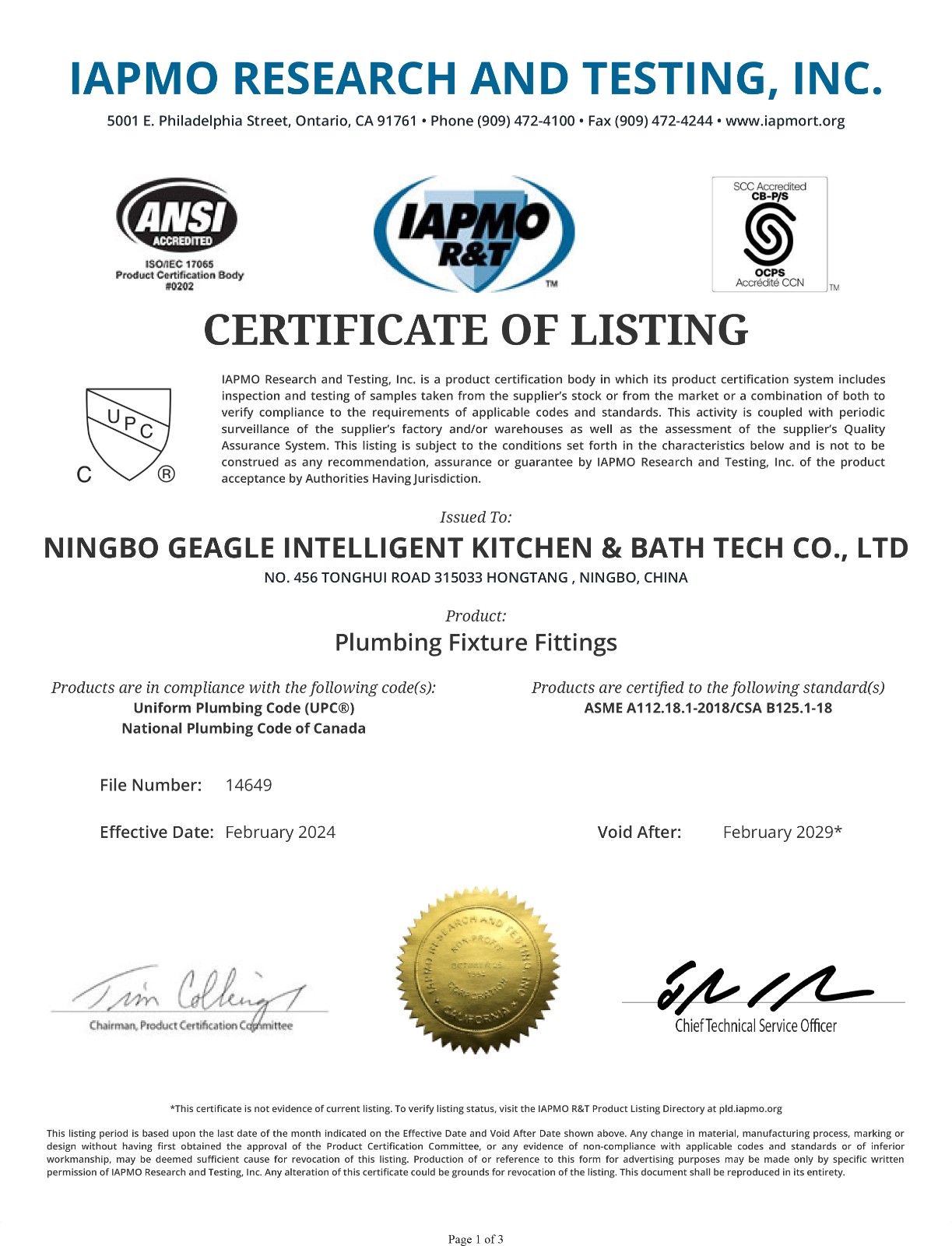

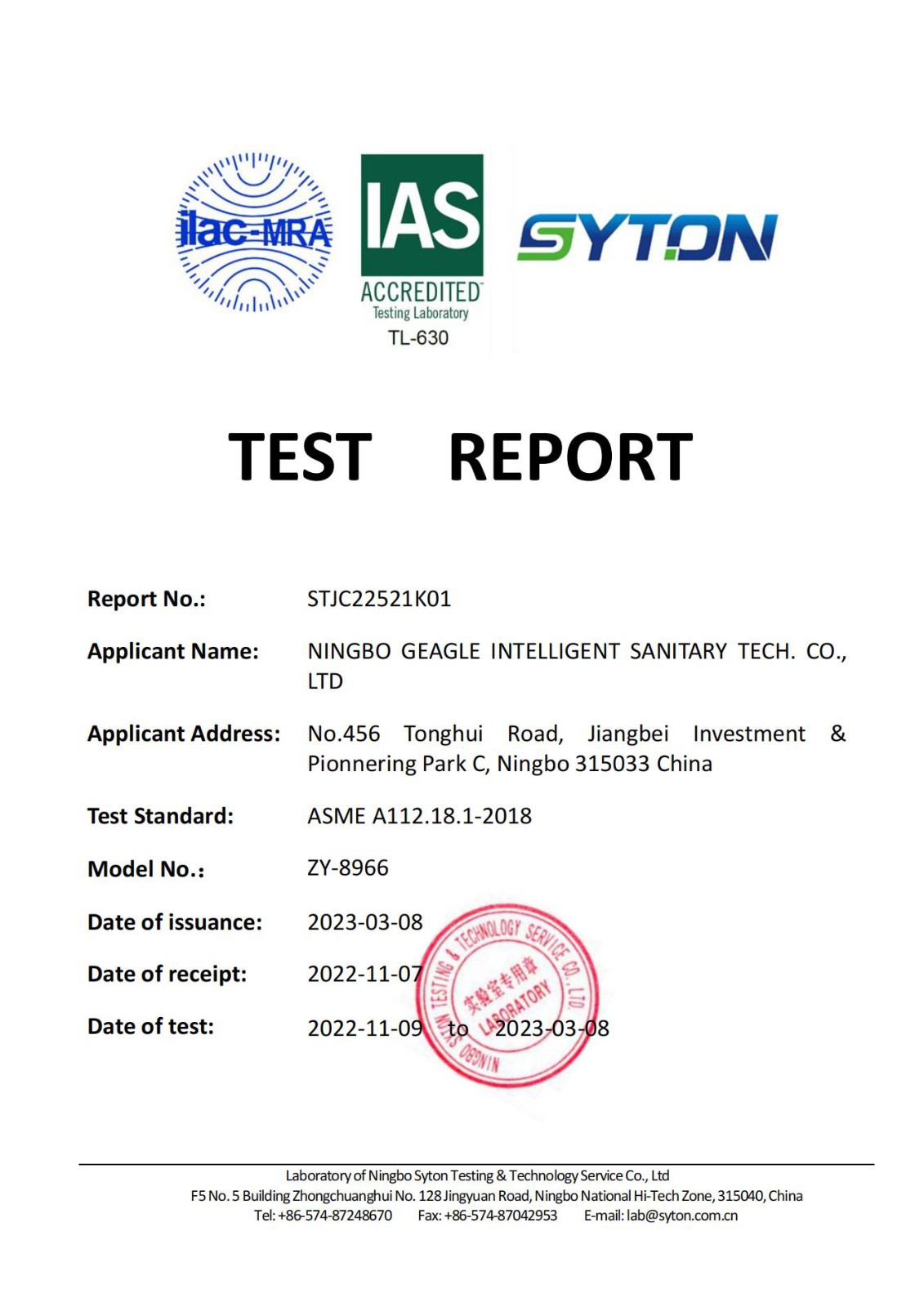

Certified: NSF/CUPC/CE/CEC
Product Introduction

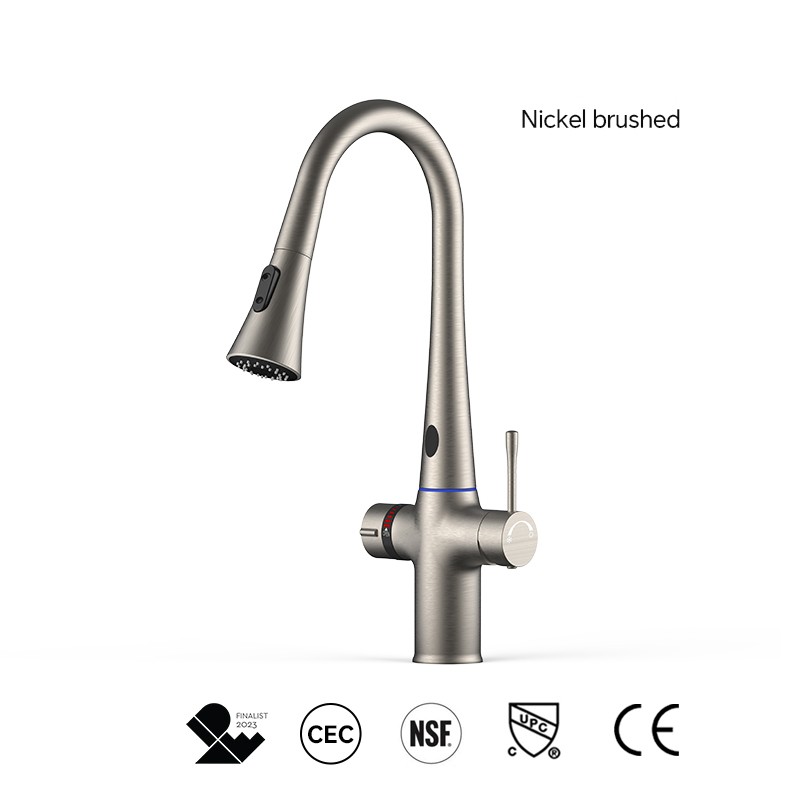

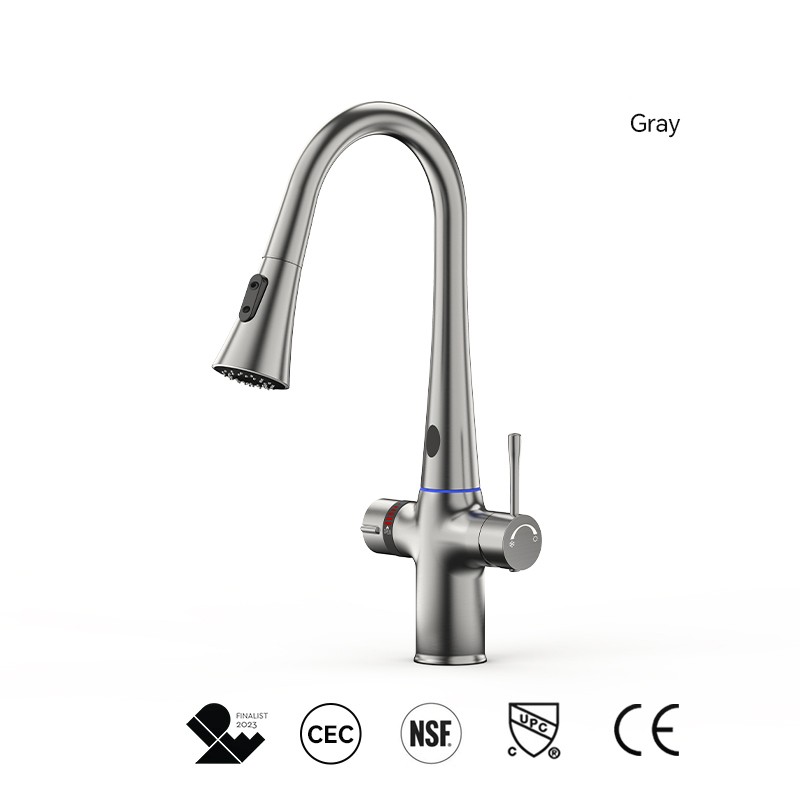

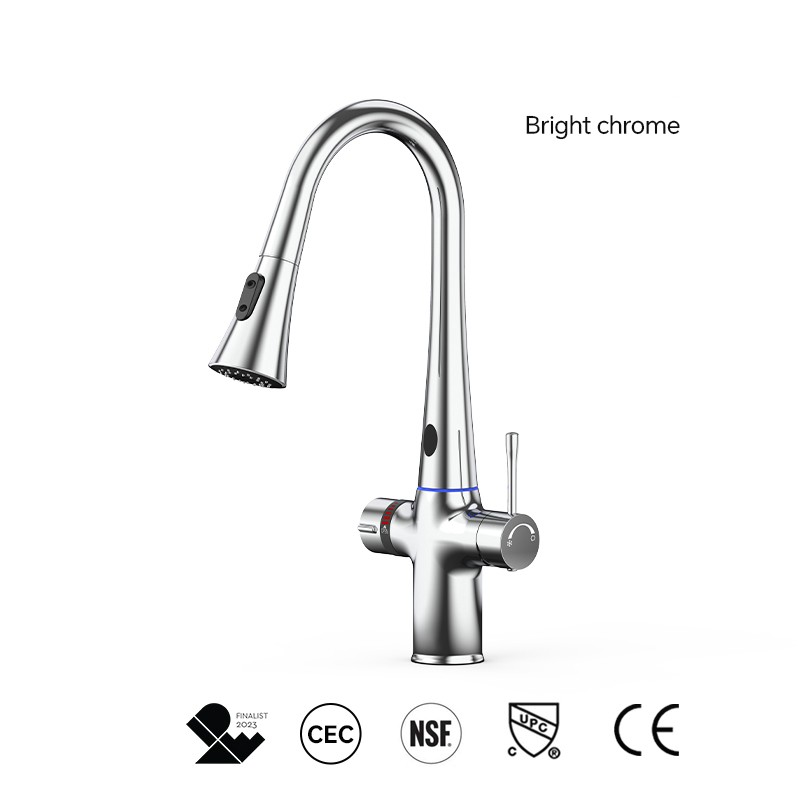

The ZY-8966 Dual-Control Kitchen Faucet combines manual operation and touchless infrared sensor control in one modern kitchen faucet, providing users with greater flexibility for everyday kitchen tasks.
Its independent manual and sensor control systems allow users to choose their preferred operating mode according to different kitchen tasks and usage scenarios. This dual-control design combines the familiarity of conventional handle operation with the convenience of hands-free water control.
The ZY-8966 features independent dual water circuits, supporting separate control of manual and sensor-operated water flow. With both aerated stream and spray modes, users can switch between a gentle water flow for everyday washing and a stronger spray for cleaning.
The faucet is designed for residential kitchens, smart home projects, hospitality applications and other customized installations. With our in-house development capabilities for smart faucet control systems and core components, OEM and ODM solutions are available for customers with specific product, finish, packaging or project requirements.
Product Features
Dual-Control Manual and Touchless Operation
The ZY-8966 combines manual control with touchless infrared sensor operation in one kitchen faucet. Users can switch between manual and sensor control according to their needs.
Independent Manual Control
The manual control system works independently from the sensor system. The faucet can continue to provide normal water flow if the power supply is unavailable or the sensor function is not working.
Independent Dual Water Circuits
The manual and sensor control systems use independent water circuits, allowing flexible water control and independent adjustment of water temperature.
Touchless Infrared Sensor Control
The infrared sensor activates the water flow when a hand or object enters the sensing area. The water flow can be stopped by sensing again, providing a convenient and more hygienic hands-free experience.
Stream and Spray Modes
The faucet provides two water outlet modes. The aerated stream delivers a soft and comfortable flow for everyday washing, while the spray mode provides a stronger water flow for cleaning stubborn stains.
Durable Ceramic Cartridge
Product Size
Installation Diagram
Technical Parameters
|
Item |
Technical Specification |
|
Applicable Water |
Tap water |
|
Water Temperature |
1℃~70°C |
|
Ambient Temperature |
1℃~50°C |
|
Working Water Pressure |
0.05MPa~0.8MPa |
|
Effluent Flow |
6.3L/min (dynamic pressure 0.3MPa)DC6V |
|
Rated Voltage |
DC6V |
|
Power |
≤3W |
|
Power Supply |
AAx4 Battery/ Power Adapter: input AC100-240V(can be customized), output DC6V |
|
Induction Mode |
Infrared Induction |
|
Sensing Distance |
Short distance sensing mode: sensing on/off ( Distance: 10 + 1cm by |
|
Low Battery Indicator |
When the battery voltage is nearly 4.8V + 0.1V, the indicator light and blue |
|
Valve Closing When |
Sensor can self-closing valve in case of power failure when valve opening |
|
Automatic water cut-off |
Long distance sensing mode: after 60s of continuous sensing, the valve will be |
|
Outlet Mode |
Stream Mode/Spray Mode; ;Adjustment angle 150° |
|
Material |

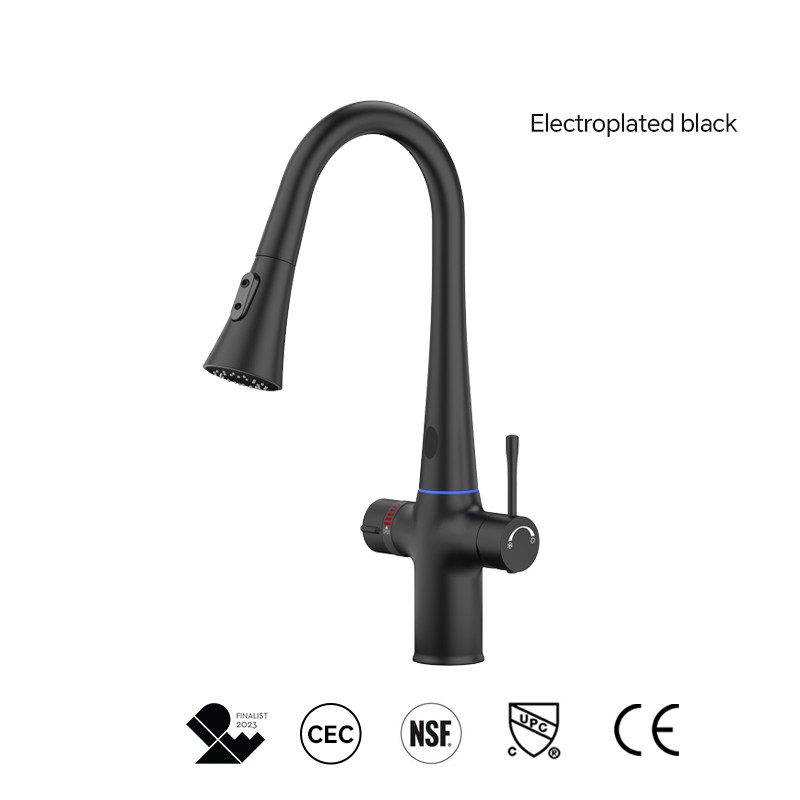

Elbow: copper, chrome plated/brushed nickel/electroplated black; |
|
Package&Weight |
615x355x90mm;3.8kg/set |
